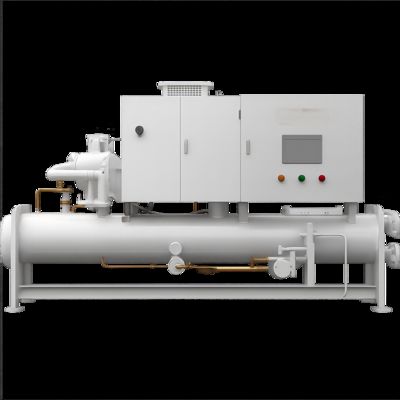

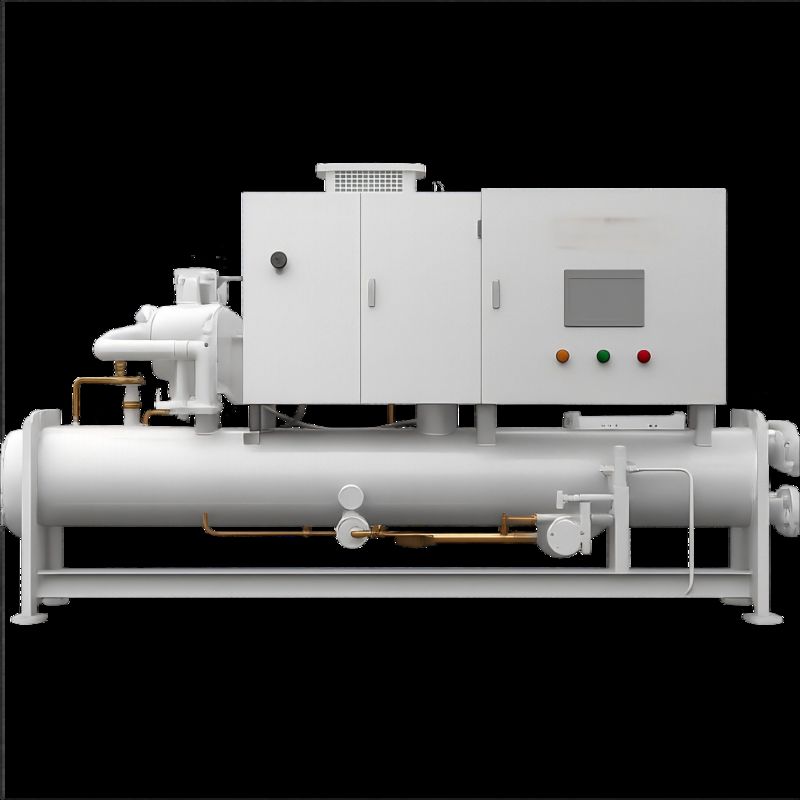

Oil-Free Inverter Centrifugal Chiller Air Suspension Technology for Ultimate Efficiency

Oil-Free Inverter Centrifugal Chiller Air Suspension Technology for Ultimate Efficiency

ブランド名: Wotech
モデル番号: WBC-75RTP-B-S(KE-QXF)
詳細情報
起源の場所:
中国
USRT:
75-300
電源:
380V 3N~50Hz
コンプレッサー:
油のないインバーター空気懸垂 遠心機
冷媒:
R134a
蒸発器:
高効率全落下充填タイプ
コンデンサー:
高効率のチューブ・イン・シェル
ハイライト:

Inverter Centrifugal Chiller

,

Air Suspension Technology Centrifugal Chiller

,

Oil-Free Centrifugal Chiller

製品説明

Oil-Free Inverter Centrifugal Chiller Air Suspension  Technology for Ultimate Efficiency

Energy-Saving and Oil-Free
Air Suspension Technology
Wotech's new generation of high-efficiency air bearing centrifugal chillers adopts highly reliabledynamic air foil bearing technology. The use of aerospace-grade aluminum alloy materials andprocesses provides higher reliability and temperature resistance.
● Advanced Compressor

Oil-Free Inverter Centrifugal Chiller Air Suspension Technology for Ultimate Efficiency 0
Dynamic air foil bearings

No need for lubricating oil or auxiliary equipment

Instant startup at ultra-high rotational speeds

Compact structure
Over 2 million start-stop life cycles

No efficiency loss from circulation system

High control precision
● Oil-Free Lubrication System
No need for oil-ubricated bearings or lubrication systems. The design is simpler andeliminates long-term efficiency loss caused by oil system degradation.
● Permanent Magnet Synchronous Motor Technology

High-Speed Permanent Magnet Synchronous Motor
High power density, compact size, lightweight structure, high motor efficiency; motor efficiency reaches up to 99% within full operating range

Uniform temperature distribution and eficient cooling; motor temperature is controlled at around 40'C, ensuring safeand efficient operation
Uses low-loss silicon steel cores and high-performance rare earth permanent magnets for high motor eficiency andlow total power loss

Employs Space Vector Pulse Width Modulation ($VPWM) for speed regulation and control; automatically adapts toload changes with high precision, low starting current, low operating current, and low lifetime energy and distribution cost

Oil-Free Inverter Centrifugal Chiller Air Suspension Technology for Ultimate Efficiency 1Oil-Free Inverter Centrifugal Chiller Air Suspension Technology for Ultimate Efficiency 2

Stable & Reliable

Self-developed core technologies and components ensure long-term reliable operationunder various harsh conditions
● Aerospace-Grade Materials
Critical components use aerospace-grade alloy materials, ensuring long-term structuralstability and safety under extreme conditions.

Oil-Free Inverter Centrifugal Chiller Air Suspension Technology for Ultimate Efficiency 3Oil-Free Inverter Centrifugal Chiller Air Suspension Technology for Ultimate Efficiency 4

Precision Control System

The electrical control system offers full automation, ensuring efficient and secure unit operation. Real-time monitoring and remote access allow for unmanned and worry-free operation.

Oil-Free Inverter Centrifugal Chiller Air Suspension Technology for Ultimate Efficiency 5

Inverter Control Technology

Built in IGBT (Insulated Gate Bipolar Transistor) is an inverter that can convert the input DC voltage into adjustable three-phase AC voltage. The signals from the motor and bearing controller determine the input frequency, voltage, and phase of the inverter, and adjust the motor speed accordingly to meet the on-site load requirements.

Oil-Free Inverter Centrifugal Chiller Air Suspension Technology for Ultimate Efficiency 6

Anti-Vibration Design for Compressor

Effectively dampens vibration at the compressor base and bearings, enhancing system stability and durability.

Oil-Free Inverter Centrifugal Chiller Air Suspension Technology for Ultimate Efficiency 7

Extended Operating Life

Between Nov. 1, 2021, and May 31, 2022, reliability testing of the centrifugal air bearing compressor showed a startup and shutdown cycle count of 5.57 million times, confirming excellent durability.

Oil-Free Inverter Centrifugal Chiller Air Suspension Technology for Ultimate Efficiency 8

Wide operating Range
Multiple core technologiecross a wide operating range.ensure relane nerormance a0The unit supports frequent start/stop operations while maintaining oil-free operation time of over 90% andrefrigerant content fluctuation within 10%
Multi-Technology Coordinated Control

Oil-Free Inverter Centrifugal Chiller Air Suspension Technology for Ultimate Efficiency 9

Wotech’s new-generation control system integrates multiple control modes, using intelligent adaptive control logic and advanced load distribution algorithms to achieve coordinated operation of multiple compressors.

The advanced GV (Guide Vane) technology enhances system efficiency across various loads, keeping deviation within 10% during unit start and shutdown.

  • Under 10% load: unit can operate stably
  • 15% load: high efficiency
  • 50% load: optimized performance
  • 100% load: full capacity and stability

In complex environments, the intelligent system maintains high-efficiency and oil-free operation.

Low Ambient Temperature Operating Technology
Supports low-temperature startup and stable operation down to -20°C ambient temperature.The advanced vapor injection and adaptive defrost control strategies enable reliable unit operatioreven under bu'o humldlty and uitra-ow amblent condlons, makina it sultable tor data centerslaboratories, electronics workshops, and other precision-controlled environments.
Comprehensive industrial level safety design
The unit integrates multiple protection features including electronic expaion valves, temperatureand pressure sensors,smart controlboards, and complete fault diaanosis odicables fault isolation and automatic alarms to ensure equipment safety and long-term stableoeratic

Specifications

Model No.   WBC-75RTP-B-S(KE-QXF) WBC-125RTP-B-S(KE-QXF) WBC-150RTP-B-S(KE-QXF)
Description USRT 75 125 150
Cooling Condition
Cooling Water Temp.:W30-35°C
Chilled Water Temp.:W17~12°C
Cooling Capacity(User Side) KW 282.1  470.2  564.2
Input Power KW 45.6  73.1  87.5
Current A 81.7  130.8  156.5
EER W/W 6.18 6.43 6.45
IPLV W/W 8.51 8.85 8.91
Max Input Power KW 54.8  87.7  105.0
Max. Input Current A 98.0  157.0  187.8
Power Supply V/PH/HZ 380V 3N~ 50HZ 380V 3N~ 50HZ 380V 3N~ 50HZ
Compressor Type   Oil-free Inverter Air Suspension Centrifugal
Refrigerant   R134a R134a R134a
Quantity Set 1 1 1
Way Of starting   Inverter Inverter Inverter
Energy Adjust Range   40%~100% 40%~100% 40%~100%
Evaporator Type   High Efficiency Full Falling-Fill Type
Water flow on the chilled water side m³/h 48.5  80.9  97.0
Water resistance on the chilled water side Kpa 40 40 50
Chilled water side interface inch DN100 DN125 DN150
Freezing solution temperature range °C 5~25 5~25 5~25
Condensor Type   High Efficiency Tube-in-Shell
Water flow on the chilled water side m³/h 60.7  101.1  121.3
Water resistance on the chilled water side Kpa 30 30 40
Chilled water side interface inch DN100 DN125 DN150
Freezing solution temperature range °C 15~40 15~40 15~40
Unit Dimension L / W / H mm 2935/1230/1795 3095/1250/1995 3250/1350/2085
Unit Weight kg 1558 1750 2420
Operation Weight kg 1791.7 2012.5 2783
