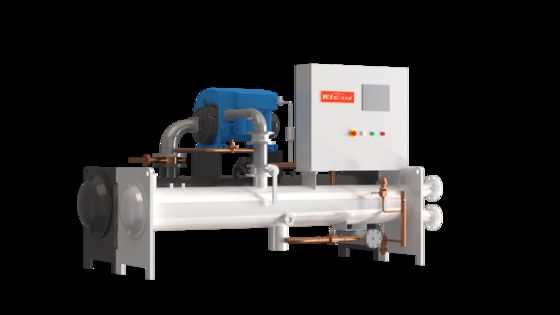

Inverter Screw Chiller Units | High-Performance and Energy-Saving Cooling for Industry
High-End High-Efficiency Variable Frequency Screw Unit
Wotech's high-performance variable frequency screw unit is one of the core components developed in-house. ltfeatures a high-eficiency compressor manufactured with precision machining and superior materials. The unit offersexcellent refrigeration performance, stable operation, low noise, and easy maintenance.
The system supports a wide cooling capacity range (450kW-2200kW), with a chilled water outlet temperature aslow as 0'C and a cooling water inlet temperature up to 20°C
Thanks to intelligent control and eficient heat exchange technology, this unit is ideal for hotels, hospitals, officebuildings, factories, and various other applications requiring high energy efficiency and stable performance
Inverter Control Technology
The air conditioning system can intelligently adjustcompressor speed to match actual load,improvingsystem part-load efficiency.lt also supports preciseenergy control in multi-compressor systems, increasingpartial load energy efficiency (lPLV) by more than 25%
High-efficiency inverter drives adjust the motor's speed toimprove energy savings and maintain stable operationwith energy savings of over 20% under typical partialload conditions.
Advanced frequency conversion oil supply technolog)ensures reliable automatic oil return and distributionenhancing the durability and reliability of the system
Compressor
The unit adopts a high-efficiency semi-hermetic screw compressorwith advanced third-generation rotor profiles and patented tooth designIt supports stepless or dual-stage capacity control, sianificantlyimproving full-load and part-load performance.Compared to traditional models, energy efficiency is increased by20%-30%,and the compressor includes multiple protection functions.
Electrical Control System
The system uses microcomputer control for fast response, real-timemonitoring, and fault recording.
It supports timed startup/shutdown, remote monitoring, and centralizedmanagement, and can be equipped with well-known PLC controllers basedon project needs
Dry Filter
Combines a high-efficiency filter core with a compact design.The specialized filter medium ensures excellent dehydration performance.preventing moisture and acid corrosion, while ensuring system reliability evenin poor water quality environments.
Electronic Expansion Valve(EEV)
The valve precisely adjusts refrigerant flow based on cooling load andtemperature, maintaining optimal evaporation conditions and improving heatexchange efficiency.
It helps stabilize system operation and enhances energy efficiency, achievingfast and precise control of superheat.
Tube-in-Shell Evaporator & Condenser
These high-efficiency heat exchangers use internal threaded copper tubes andundergo strict testing to ensure reliable sealing and performance.They are compact, lightweight, efficient, and suitable for a wide range ofoperating conditions
Specifications
| Model No. | WBC-80RTP-A-S(ZFL-CXF) | WBC-125RTP-A-S(ZFL-CXF) | WBC-150RTP-A-S(ZFL-CXF) | WBC-200RTP-A-S(ZFL-CXF) | WBC-300RTP-A-S(ZFL-CXF) | ||
| Description | USRT | 80 | 125 | 150 | 200 | 300 | |
| Cooling Condition Cooling Water Temp.:W30-35°C Chilled Water Temp.:W17~12°C |
Cooling Capacity(User Side) | KW | 281 | 440 | 528 | 703 | 1055 |
| Input Power | KW | 43 | 68 | 83 | 103 | 166 | |
| Current | A | 76.9 | 121.6 | 148.5 | 184.3 | 297.0 | |
| EER | W/W | 6.5 | 6.5 | 6.4 | 6.8 | 6.4 | |
| IPLV | W/W | 8.89 | 9.69 | 10.52 | 10.69 | 10.52 | |
| Max Input Power | KW | 51.6 | 81.6 | 99.6 | 123.6 | 199.2 | |
| Max. Input Current | A | 92.3 | 146.0 | 178.2 | 221.1 | 356.4 | |
| Power Supply | V/PH/HZ | 380V 3N~ 50HZ | 380V 3N~ 50HZ | 380V 3N~ 50HZ | 380V 3N~ 50HZ | 380V 3N~ 50HZ | |
| Compressor | Type | Magnetic Levitation Oil-Free Inverter Centrifugal | |||||
| Refrigerant | R134a | R134a | R134a | R134a | R134a | ||
| Quantity | Set | 1 | 1 | 1 | 1 | 2 | |
| Way Of starting | Inverter | Inverter | Inverter | Inverter | Inverter | ||
| Energy Adjust Range | 40%~100% | 40%~100% | 40%~100% | 40%~100% | 40%~100% | ||
| Evaporator | Type | High-Efficiency Falling-Film Type | High-Efficiency Flooded Type | ||||
| Water flow on the chilled water side | m³/h | 48.332 | 75.68 | 90.816 | 120.916 | 181.46 | |
| Water resistance on the chilled water side | Kpa | 100 | 100 | 100 | 100 | 100 | |
| Chilled water side interface | inch | DN100 | DN100 | DN150 | DN150 | DN200 | |
| Freezing solution temperature range | °C | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | |
| Condensor | Type | Evaporative Cooling Type | |||||
| Heat Dissipation Capacity | kW | 359.68 | 563.2 | 675.84 | 899.84 | 1350.4 | |
| Number of Fans | SET | 2 | 3 | 4 | 6 | 8 | |
| Power per Fan | kW | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | |
| Noise Level | db(A)10m | 70 | 73 | 75 | 77 | 79 | |
| Number of Water Pumps | SET | 1 | 1 | 1 | 1 | 1 | |
| Water Pump Power | kW | 1.5 | 2.2 | 3 | 3 | 4 | |
| Water Flow Rate | m³/h | 39.8739 | 62.436 | 74.9232 | 99.7557 | 149.7045 | |
| Evaporative Makeup Water Volume | m³/h | 0.38 | 0.59 | 0.71 | 0.95 | 1.45 | |
| Ambient Temperature Range | °C | 10~45 | 10~45 | 10~45 | 10~45 | 10~45 | |
| Unit Dimension | L / W / H | mm | 4950/2240/2480 | 6500/2240/2480 | 8950/2240/2480 | 11000/2240/2480 | 17900/2240/2480 |
| Unit Weight | kg | 2800 | 4060 | 5320 | 6720 | 10080 | |
| Operation Weight | kg | 80.5 | 83.95 | 86.25 | 88.55 | 90.85 | |
|
|
