| ブランド名: | Wotech |
| モデル番号: | WBC-300RTP-B-S(KE-CXF) |

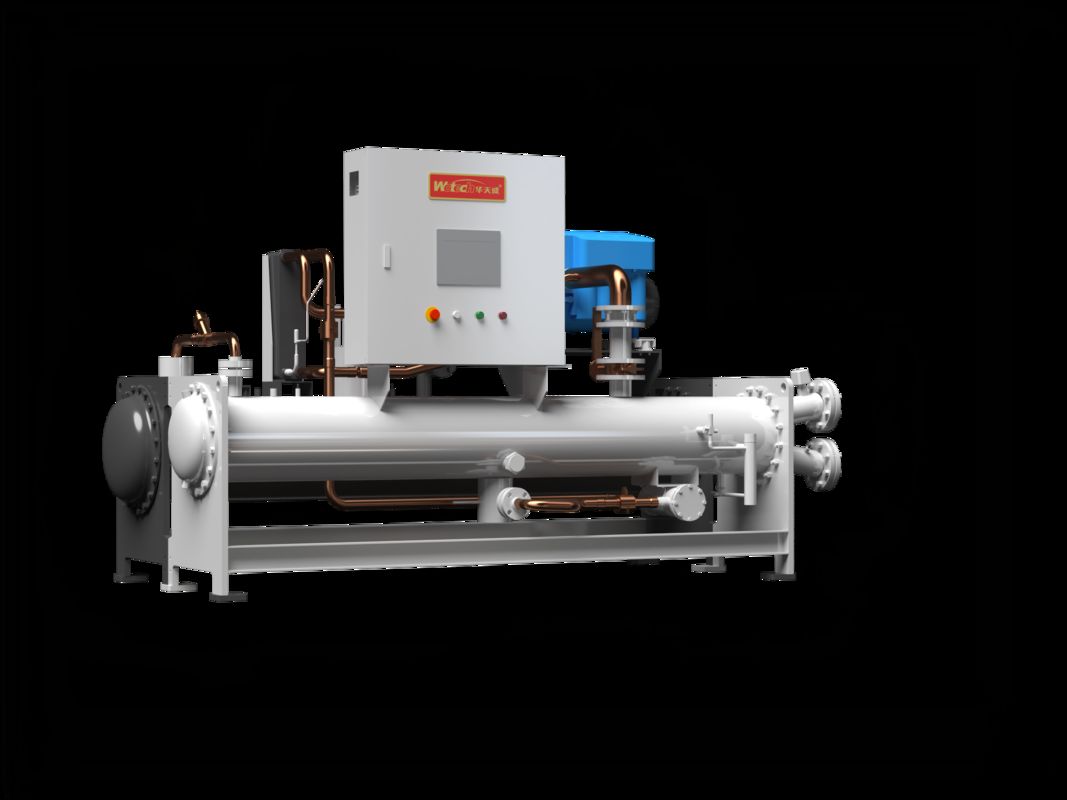

High-Efficiency Oil-Free Magnetic Bearing Chiller for Industrial & Commercial HVAC
Energy saving and oil-free
Wotech's Next-Generation High-End Magnetic Levitation Chiller integrates magnetic levitation technology.aerospace power technology, permanent magnet synchronous motor technology, DC inverter technology, andfalling-film evaporator technology to deliver superior performance and energy efficiency.
Magnetic Levitation Technology
The motor shaft and impeler assembly are suspended during rotation using digitaly controled magnetic bearings, completely eliminating metalto-metacontact and mechanical wear.Five sets of position sensors detect shaf isplacement in realtime. The Bearing Magnetic Contro! Controller (BMcC) adjusts the magnetic field strength byregulating current, keeping the rotor precisely centered to ensure safe and stable operation.Maximum shaft speed: 48.000 rpm
Position sianal response frequency: 50 kHZ.Real-time correction rate: up to 100.000 adjustments per second.
| Model No. | WBC-300RTP-B-S(KE-CXF) | WBC-350RTP-B-S(KE-CXF) | WBC-400RTP-B-S(KE-CXF) | WBC-450RTP-B-S(KE-CXF) | WBC-500RTP-B-S(KE-CXF) | WBC-600RTP-B-S(KE-CXF) | ||
| Description | USRT | 300 | 350 | 400 | 450 | 500 | 600 | |
| Cooling Condition Cooling Water Temp.:W30-35°C Chilled Water Temp.:W17~12°C |
Cooling Capacity(User Side) | KW | 1056.0 | 1232.0 | 1408.0 | 1584.0 | 1760.0 | 2112.0 |
| Input Power | KW | 166.0 | 192.2 | 205.5 | 246.7 | 274.6 | 308.3 | |
| Current | A | 297.0 | 343.8 | 367.7 | 441.4 | 491.2 | 551.6 | |
| EER | W/W | 6.36 | 6.41 | 6.85 | 6.42 | 6.41 | 6.85 | |
| IPLV | W/W | 10.53 | 10.60 | 10.71 | 10.61 | 10.49 | 10.70 | |
| Max Input Power | KW | 199.2 | 230.6 | 246.7 | 296.1 | 329.5 | 370.0 | |
| Max. Input Current | A | 356.4 | 412.6 | 441.2 | 529.7 | 589.4 | 661.9 | |
| Power Supply | V/PH/HZ | 380V 3N~ 50HZ | ||||||
| Compressor | Type | Magnetic levitation oil-free Inverter centrifugal | ||||||
| Refrigerant | R134a | R134a | R134a | R134a | R134a | R134a | ||
| Quantity | Set | 2 | 2 | 2 | 3 | 3 | 3 | |
| Way Of starting | Inverter | Inverter | Inverter | Inverter | Inverter | Inverter | ||
| Energy Adjust Range | 40%~100% | 40%~100% | 40%~100% | 40%~100% | 40%~100% | 40%~100% | ||
| Evaporator | Type | Full Falling-Fill Type | ||||||
| Water flow on the chilled water side | m³/h | 181.6 | 211.9 | 242.2 | 272.4 | 302.7 | 363.3 | |
| Water resistance on the chilled water side | Kpa | 100 | 100 | 100 | 100 | 100 | 100 | |
| Chilled water side interface | inch | DN200 | DN200 | DN200 | DN250 | DN250 | DN250 | |
| Freezing solution temperature range | °C | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | |
| Condensor | Type | Tube-in-Shell | ||||||
| Water flow on the chilled water side | m³/h | 227.0 | 264.9 | 302.7 | 340.6 | 378.4 | 454.1 | |
| Water resistance on the chilled water side | Kpa | 80 | 80 | 80 | 80 | 80 | 80 | |
| Chilled water side interface | inch | DN200 | DN200 | DN200 | DN250 | DN250 | DN250 | |
| Freezing solution temperature range | °C | 15~40 | 15~40 | 15~40 | 15~40 | 15~40 | 15~40 | |
| Unit Dimension | L / W / H | mm | 4300/1600/2600 | 4300/1600/2600 | 4300/1600/2600 | 4500/1900/1750 | 4500/1900/1750 | 4500/1900/1750 |
| Unit Weight | kg | 3800 | 4800 | 5240 | 6650 | 7780 | 8900 | |
| Operation Weight | kg | 4146 | 4146 | 4146 | 4146 | 4146 | 10235 | |
|
|
